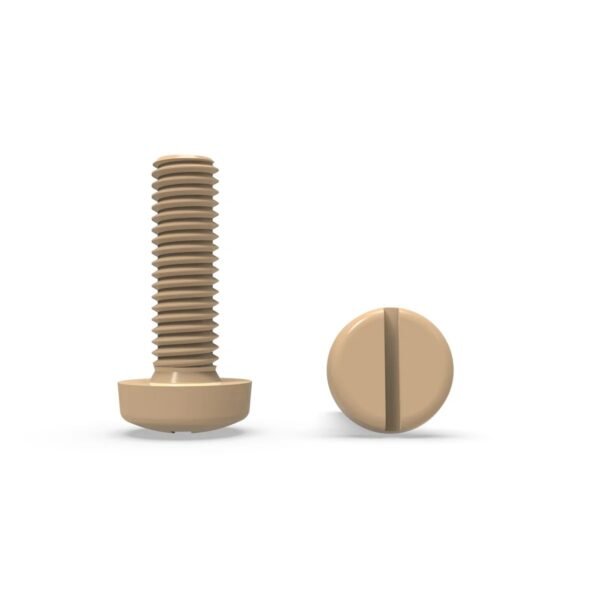

PEEK Slotted Pan Screw
PEEK Slotted Pan Screw are a kind of semi-crystalline special engineering plastic with superb performance; they have strong chemical resistance, excellent heat resistance, wear resistance, flame retardancy and hydrolysis resistance.
M Size: M2.5-M16
peek plastic material: Polyetheretherketone (PEEK)
Thread Type:Pan head bolts
Length Range: 15mm-200mm (Customizable)
Finish: Natural/Black/Other Colors
PEEK Slotted Pan Screw

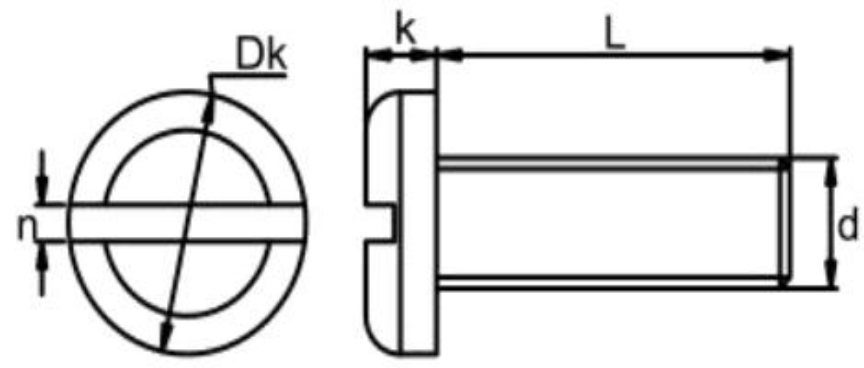

Product Drawing
PEEK Slotted Pan Screw is a semi crystalline special engineering plastic with ultra-high performance;Strong chemical resistance, concentrat-ed sulfuric acid is the only universal chemical that can dissolve PEEK: It has excellent heat resistance.wear resistance,flame retardancy,and hydrolysis resistance.

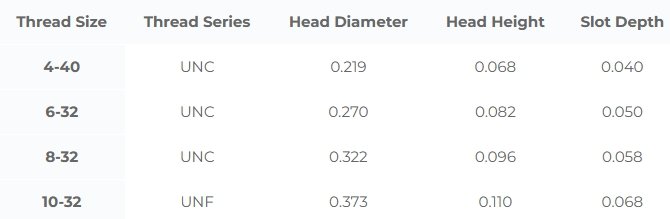

Product Parameters
PEEK Slotted Pan Screw size have different products according to the size of the hexagonal bolt head and the thread type. Some product information is shown in the figure below. If you want to know more, please contact us .
It is recommended to use screws and nuts of the same material.
Key Features
Corrosion-resistant：
Resistant to strong acids, alkalis, and solvents, it fundamentally eliminates rust and chemical corrosion problems associated with metal bolts.
Extremely Light and Strong：
Weighing only one-fifth that of stainless steel, yet boasting comparable strength, it’s an ideal choice for lightweighting equipment.
Insulated and Antimagnetic：
100% electrically insulating and completely non-magnetic, it provides a safety guarantee for precision electronics, semiconductors, and MRI equipment.
High-Temperature Resistant：
Sustainable for long-term operation at 260°C and short-term temperatures exceeding 300°C.
Safe and Clean：
Flame Retardant: Inherently flame-retardant, achieving UL94 V-0 rating, and generating low smoke during combustion.
Food and medical-grade certified, non-toxic, and flame-retardant, it can be used directly in food and pharmaceutical machinery.
Key Polyether Ether Ketone (PEEK) Properties
ISO 9001 Certified
Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.
Material Certificates
Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer
Certificate Of Conformity
Product certificate of conformity available on request, confirming the product manufacturing standard and material.
Highly Competitive Prices
We offer price matching against all UK distrubutors. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
Applications
- Semiconductor equipment
- Chemical pumps and valves
- Medical equipment
- Food industry
- Aerospace
Advantages
- Corrosion-resistant: eliminates the problem of metal bolt rust.
- Lightweight: Weighs only 1/5 of stainless steel, reducing load.
- Insulated and anti-magnetic: Suitable for high-frequency circuits and strong magnetic field environments.
- Long life: Fatigue resistance surpasses metal, extending maintenance intervals by three times.
- Flexible customization: Supports custom sizes, colors, and performance enhancements.
Packaging & Delivery
Standard packaging includes PE bag, foam cover, and one double-deck corrugated outer carton for safety during transit. Delivery time is 5-15 working days depending on the quantity.
