PVDF Hexagonal bolts
PVDF Hexagonal bolts is a polymer engineering plastic with excellent chemical and weather resistance, and excellent UV resistance and aging resistance.
M Size: M3-M8
peek plastic material: PVDF Polyvinylidene fluoride
product Type: Hexagon head bolt
Finish: Natural/Black/Other Colors(Customizable)
PVDF Hexagonal bolts

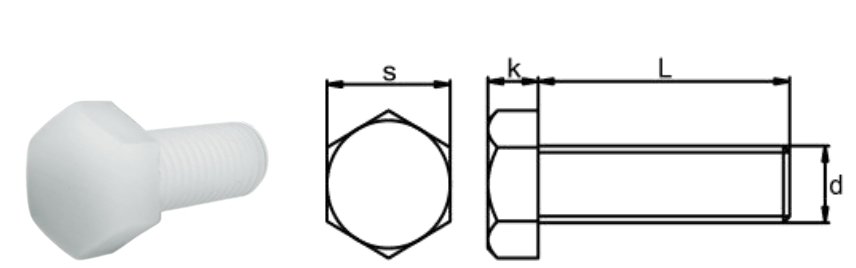

Product Drawing
PVDF Hexagonal bolts is a semi crystalline special engineering plastic with ultra-high performance;Strong chemical resistance, concentrat-ed sulfuric acid is the only universal chemical that can dissolve PEEK: It has excellent heat resistance.wear resistance,flame retardancy,and hydrolysis resistance.
Product Parameters

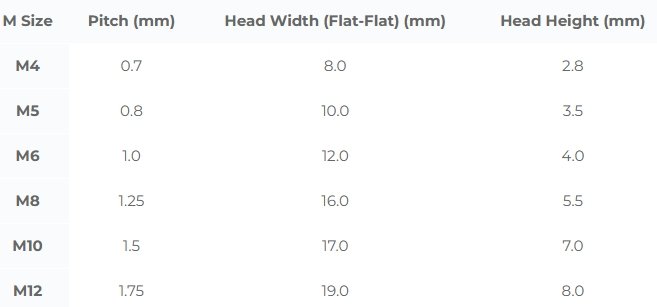

PVDF Hexagonal bolts have different products size, Some product information is shown in the figure below. If you want to know more, please contact us .
It is recommended to use screws and nuts of the same material.
Key Features
Chemical Name: Polyvinylidene fluoride or Polyvinylidene difluoride
Chemical Resistance: Excellent, resistant to most chemicals and solvents.
Strength and Hardness: Among fluoroplastics, it exhibits outstanding mechanical strength, hardness, and creep resistance.
Weather Resistance: Excellent, resistant to UV radiation, commonly used in outdoor environments.
Purity: High, suitable for applications requiring high cleanliness, such as the semiconductor, medical, and food industries.
Operating Temperature: Typically suitable for continuous use within a range of -40°C to +150°C.
Key Polyether Ether Ketone (PEEK) Properties
ISO 9001 Certified
Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.
Material Certificates
Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer
Certificate Of Conformity
Product certificate of conformity available on request, confirming the product manufacturing standard and material.
Highly Competitive Prices
We offer price matching against all UK distrubutors. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
Applications
- Semiconductor equipment
- Chemical pumps and valves
- Medical equipment
- Food industry
- Aerospace
Advantages
- Corrosion-resistant: eliminates the problem of metal bolt rust.
- Lightweight: Weighs only 1/5 of stainless steel, reducing load.
- Insulated and anti-magnetic: Suitable for high-frequency circuits and strong magnetic field environments.
- Long life: Fatigue resistance surpasses metal, extending maintenance intervals by three times.
- Flexible customization: Supports custom sizes, colors, and performance enhancements.
Packaging & Delivery
Standard packaging includes PE bag, foam cover, and one double-deck corrugated outer carton for safety during transit. Delivery time is 5-15 working days depending on the quantity.
