R-type rivet
R-type rivet are single-joint connections suitable for closed or semi-enclosed structures and large-scale production lines requiring rapid assembly.
M Size: R2-R6
peek plastic material: PA66/PP/POM
COLOR:Naturalcolor/pink/blue/orange.Othercolorscanbe Customizable
R-type rivet

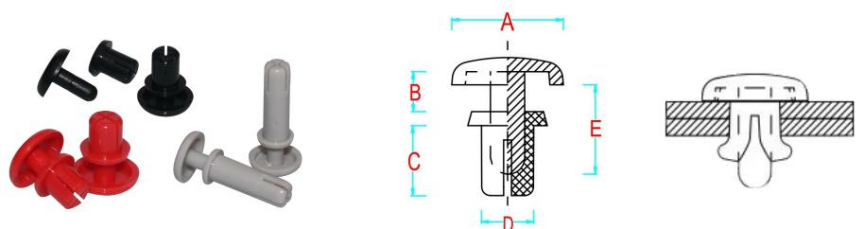

Product Drawing
R-type rivets are a common mechanical fastener, open-ended blind rivets. They have a fire rating of 94V-2 and a temperature range of -30-130°C.
Key Features
- Single-sided riveting: Installation requires only one side of the workpiece for installation, which is its core feature.
- Open expansion: During riveting, the mandrel is pulled in, forcing the end of the shank to expand and open, forming an “R”-shaped flare, thereby clamping the workpiece.
- Non-removable: After installation, the mandrel is pulled apart or permanently locked, creating a permanent connection and generally not reusable.
ISO 9001 Certified
Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.
Material Certificates
Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer
Certificate Of Conformity
Product certificate of conformity available on request, confirming the product manufacturing standard and material.
Highly Competitive Prices
We offer price matching against all UK distrubutors. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
Applications
- Industrialparts
- Engineeringandconstruction
- Agriculturalequipment
- Medicalmachinery
- Cableandpipeline
- Chemicalindustry
- Dailynecessitiesandotherfields
Advantages
- Easy installation: Installation is quick and efficient using a blind rivet gun.
- Suitable for closed structures: This solves the problem of riveting from only one side.Vibration-resistant and anti-loosening: The resulting expansion body provides a strong locking effect, making it less susceptible to loosening due to vibration.
- Widely applicable: It can connect panels of different materials, such as metal and plastic.
- Insulation-resistant
Packaging & Delivery
Standard packaging includes PE bag, foam cover, and one double-deck corrugated outer carton for safety during transit. Delivery time is 5-15 working days depending on the quantity.
